Acoustic Paneling - Budget, Pro and Premium Custom

Arsenal IMG_7020.jpg

Record, listen, and mix with ultra clarity and precision! Industry standard acoustic paneling​

Fully Made in Canada with Canadian Materials only!

Acoustic Panel room treatment available in either framed-upholstered fabric or frameless laminate fabric commercial applications. We use fire-rated and water-resistant semi-rigid fiberglass wool boards only. Our fiberglass uses the finest rotary-woven glass fibers bonded with thermosetting resin to produce structurally rigid board insulation. Designed for use in a wide range of industry standard acoustical control applications such as home theatre treatment, studios, audio rooms, and commercial/office interior product applications and even industrial noise control. In addition, these boards are very resilient and resist settling or breakdown, resist sagging from vibration, resist water or moisture; and resist damage from impact which is far superior to other fiber-based absorption boards such a rockwool.  This type of fiberboard material also offers a more professional and even frequency absorption at smaller thicknesses than the other types of boards.
We use only industrial grade and official ASTM Tested materials! Consultations available with room testing!
ACOUSTIC PANEL CATEGORIES

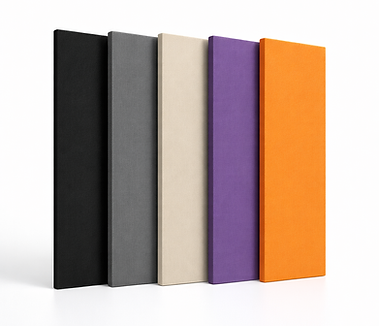

BUDGET SERIES PANELS
   Quick, Functional, Low Cost!
  • 2x4 ft -Framed in Real Wood (no mdf or particleboard!)
  • Starting at only $79.99
  • available in 1.5", 2.5", 3.5" and 5.25"
  • Basic Panel Fabric with wide variety colors as solids only
  • High density Industry Standard OC703 fiiberglass wool
  • Includes your choice of D-ring mounting or paint-matched side brackets
  • Corner Mounting with Polyfill Fill also available
  • White Fiber Fill for corner mounted panels available
PRO SERIES PANELS
   Corporate Industry Standard!
  • Frameless Hardened Edge Office Standard
  • 2x4ft, 1 inch, Pro Panel Fabric additional inch of thickness up to 3 inch max in 2x4 size.
  • Industry Standard 6pcf Density OC705
    Fiberglass wool Resin-Hardened Edges, Fabric-adhered, Industrial grade, impact resistant, no-crumble
  • Swatch colors Based on Pro Fabric Swatches Below
  • Includes Impaler clips
  • Ceiling mounting is $2 Per Sq foot Snap-on Clips
  • Available sizes: 2x4, 2x2, 1x4, (latter two half sizes are  -Corner fill triangle also available to create Sub-Bass Corner Absorbers and angled baffle work also available
CUSTOM PREMIUM SERIES PANELS/ACOUSTIWALL SYSTEMS
Our Most prestigious looking panel series
  • Per Square foot. Call for pricing! 1", 2" also available on minimum order. 7pcf density, Micromesh layer below fabric
  • Edges are Resined No wood frames, Laminated Fabric
  • Based on any online Guilford of Main swatch selection!
  • Very balanced sound coefficient absorption rating across the sound spectrum due to ultra flat micromesh faced layer below fabric
  • Our most impact-resistant absorption surface and corners!
  • Impaler Clip Mounting Included (Tiny Holes, flanged screws) (Wall Spacers available to offset panels with airgap)
  • Flushmount ceiling mounting or hanging ceiling mounting available
  • Custom sizing up to 4x8 foo
  • Corner angle mounting also available with 45 degree or other degree brackets

TRIAD SUB-BASS FULL CORNER ABSORBERS (Picture Coming Soon)

Corner Shaped Absorber for Low Frequency Control

  • Medium 18" Wide x 48" Tall $299

  • Large 24" Wide x 48" Tall corner $379

  • Premium Front Beveled Panel with rear  bevels for sleek corner fit

  • Includes Fiberfill corner filler (wrapped) in triangular cavity behind corner mounted panel Sub-bass Absorption down to 35hz!

  • Optional Membrane to more intensely target 60-100hz frequency range $79.99 Upgrade for Medium, $99.99 for large.​​​​​​​​

FRACTAL CELL DIFFUSORS

-Diffusion from 250Hz to 12000khz

-24" x 24" Gypsum Rock Moulded, Finerglass Reinforced.

-Comparable performance to the construction of wood!

-Comparable Weight to equivalent pine construction

-Screws to Studs or Drywall Anchors​

5182896-5eee93d9-2-leftover-baffles_edit
  • 2Inch - 2ft x 6ft
  • Adjustable Forward/Backward Stands
    Select from Any Pro Panel Fabric Swatches Below (or Guilford of Maine FR701)
  • Wood Framed with Pro Series Fabric
​
5182896-5eee93d9-2-leftover-baffles2_edi
BAFFLE GOBOS​​

FABRIC SWATCH SELECTION

​​

BUDGET SERIES​​

PRO SERIES​​

CanPro Card 1


Reference Row then column

Example: CanPro Card 1, Row 2 Column 1:


CanPro Card  2


CanPro Card  3


CanPro Card  4


CUSTOM PREMIUM SERIES

Select From any Guilford Of Maine online Panel or Acoustic Fabric Swatch Selection

https://duvaltex.com/en-ca/contract-textiles/panel-acoustic

(or from any Pro Series above)​​

SOUNDPROOFING ISOLATION

​

ISOWALL SYSTEM - DUAL PURPOSE ISOLATION/ABSORPTION PANELS AND COMPOSITES

  • Please Call To inquire per Sq Foot pricing from $15/sf
  • Either Wood framed Wall System with Mass loaded Vinyl
  • Or Composite Isolation panels
​
SOUNDPROOF WALLS
-Decoupled, Resilient Channel, Isolation Clips and Floos all available
-Call For Estimate
